Mounting bolts and expanding screw sleeves (drill 1/4in or 6mm holes) included, to enable easy install with no screws visible from the top
Optional trim flange included
Optional USB interface available or connect directly to I-PAC 2

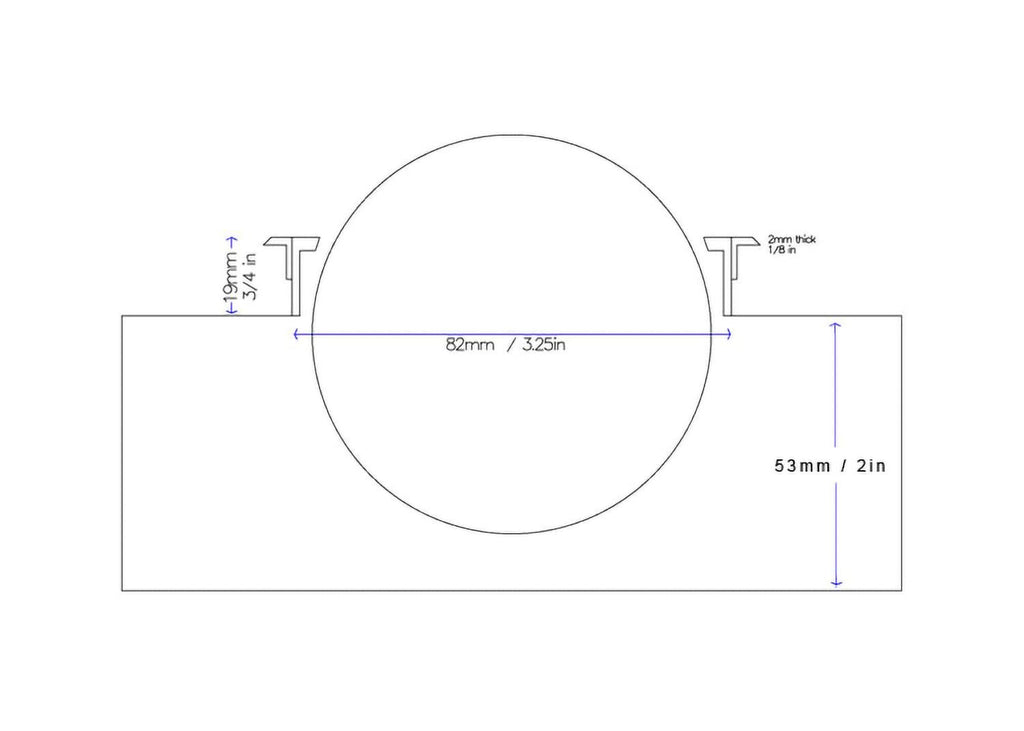

Use with control panel thickness up to 3/4" (19mm)
6 grease-free bearings and 3 stainless-steel shafts for professional durability
Available in Pearlescent (this product), Blue, Red, or Cue-ball White

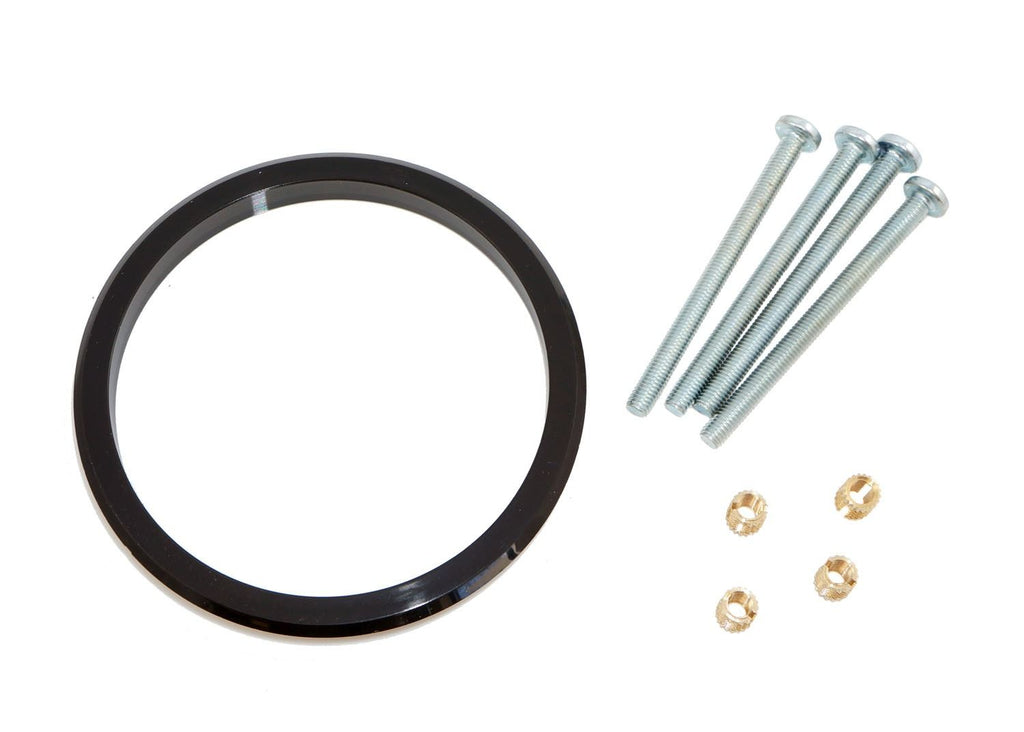

Box Contains:

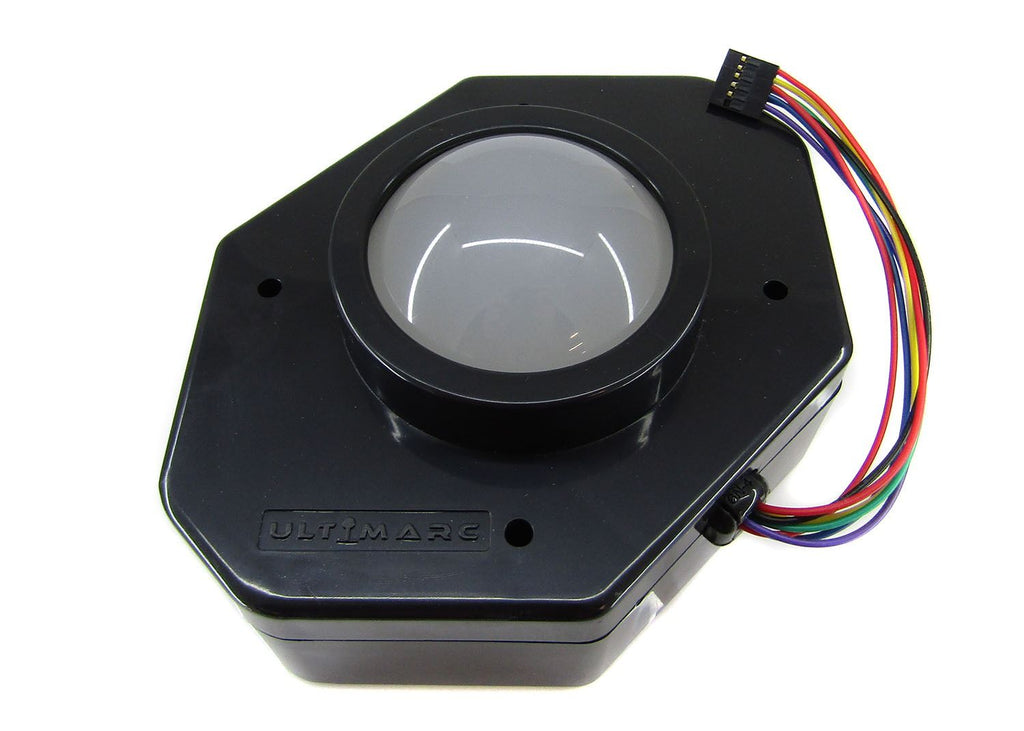

Complete assembled trackball with Pearl ball
Black trim flange
4 expanding screw sleeves
4 mounting bolts
Pinout:
3-Wire Connector:
5V - Red
X1 - Purple
X2 - Blue
4-Wire Connector:
5V - Red
Y1 - Yellow
Y2 - Green
G - Black
