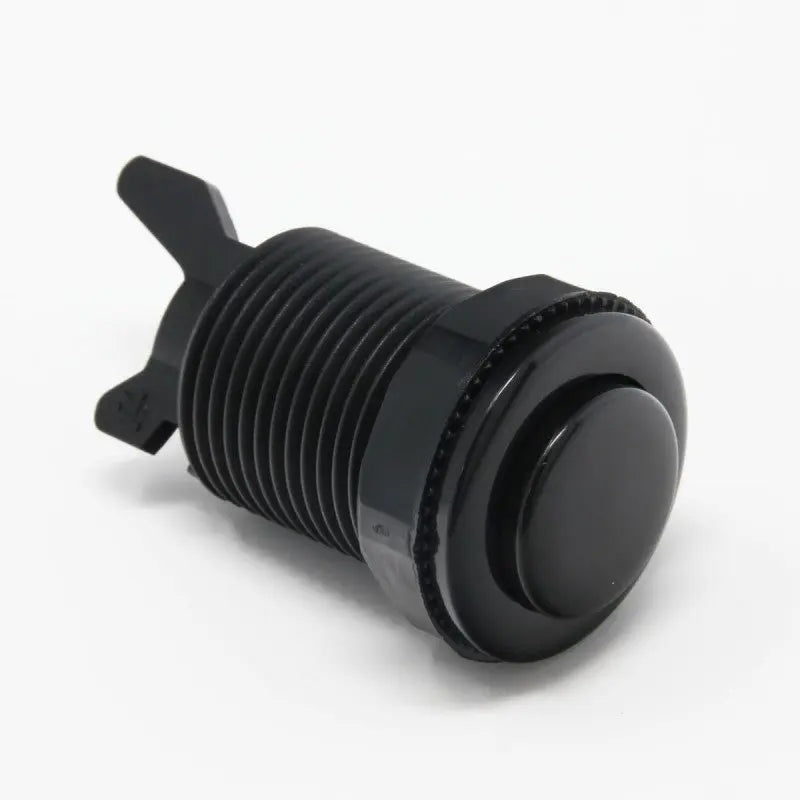

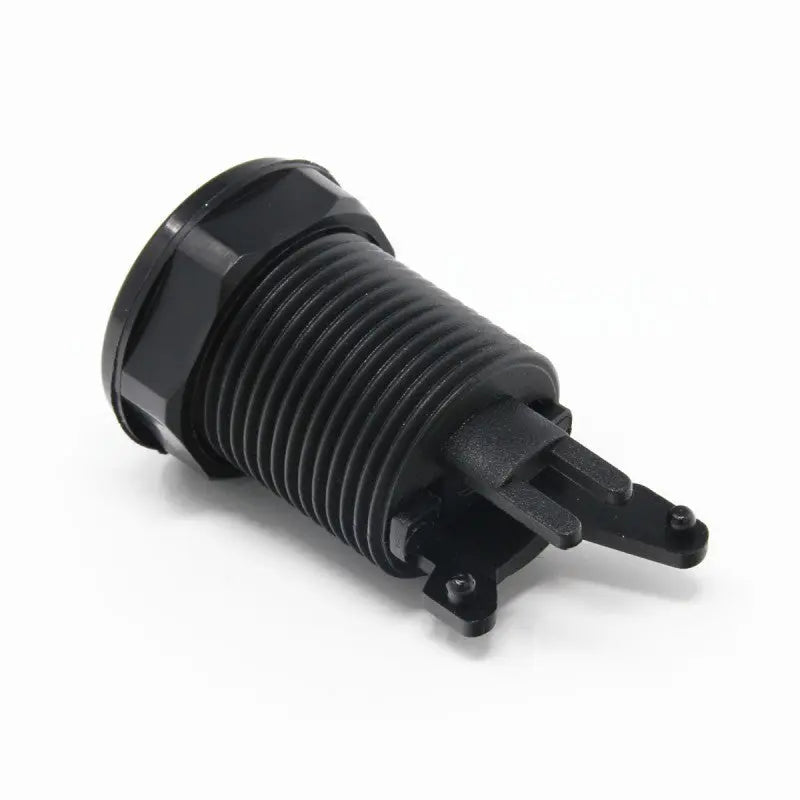

iL PSL-CV Convex Button - Black - Short Stem

Industrias Lorenzo, S.A.SKU: iL-PSL-CV-K



*** This model is the earlier version of short stem iL button. New shorter iL button will be called PSL-C series.

The American styled Black Convex Short Length buttons by iL (Industrias Lorenzo).

These are the real original arcade buttons from iL, made in Spain, not in Asia. This is who supplied all of Happ buttons before Happ exported production to China in mid 2000s.

The iL PSL-CV is a high quality arcade button, which features a convex plunger and has a shorter stem than PSL-L-CV series, which makes this button suitable for mounting in metal or thick wooden control panels. The iL PSL-CV push-button is supplied with a button nut and the selection of microswitch with .187 terminals.

Button Specification:

  • Solid Black plunger & Solid Black Medium stem
  • Dimensions: 1.3" L x 1.5" H x 1.5" W
  • Barrel length: 1.3"
  • Mounting hole required: 1.125" (28 mm) hole
  • Convex style plunger
  • Short stem body
  • Made for 1/16 inch metal to  1/2 inch wood control panels
  • High quality plastics for durability
  • Includes a button nut and a microswitch

Microswitch Option:

  • 50 gram Zippy's microswitch is included at the base cost.
  • Original Cherry/ZF microswitch (Cherry D44X 75g .187" microswitch) available by exchanging Zippy microswitch with extra cost of $1.
  • Rollie Leaf switch available for Leaf style pushbutton.

To install, please see an explanation of which tabs to use in our solution database here.
